IMS Sewing Machines

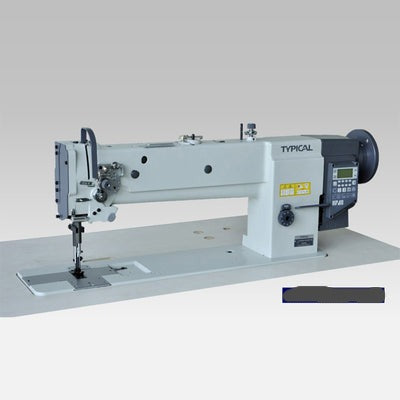

Typical GC20608HL18D Long and High arm Twin Needle compound feed

Typical GC20608HL18D Long and High arm Twin Needle compound feed

Twin needle Long Arm / High Arm compound feed lockstitch with Direct Drive motor

18" long high arm, Twin needle compound feed machine, suitable for sewing medium to heavy weight materials such as upholstery, leather, canvas, vinyl etc.

The long and high arm provides excellent clearance when sewing large projects such as shade sails, lounge suites etc.

The combined needle feed and walking foot system allows consistent feeding of materials without the risk of stitch gathering.

Typical GC20608HL18 Features:

High presser foot lift of 16mm enables easy material handling

Maximum speed of 1600 spm.

Large vertical axis rotary hooks with large bobbins

Reduced operating noise and vibration.

Automatic lubrication to sewing head.

Stitch length can be easily selected by the stitch dial.

Alternating vertical movement mechanism prevents irregular stitches.

The safety clutch device on the Typical GC20608HL18 is automatically engaged in the event of thread or mechanical obstruction, preventing possible hook damage. A reset button fitted to the bedplate returns the machine back to the normal state.



Clearance under Presser Foot

Hand 8mm / Knee 16mm

Stitch Length



DP x 17 20~30

Needle Bar Stroke


Maximum Sewing Speed (rpm)


Bed Size

724 x 178mm

Working Space

457 x 150mm

For more information on this or any of our product range please call us on :

1300 831 336  /  02 9569 0077

or fill in the product enquiry form below and we will respond ASAP.
